Computer Controlled Rivet Embossing Machine

Or

How I Stopped Hating Tenders and Learned to Love Technology







Every time I get to the point in a project where I have to emboss rivets, beads of sweat start forming on my forehead. I know one muscle spasm or brain fade while doing that tender side will spell disaster! You know the routine… things are going great and then you hit the die a little too hard and you have a nice halo around the rivet. Or you move the brass sheet a little too much (or too little!) and the thing is in the wrong spot.



I know, I know, I’ve seen those photos of real tenders that have the rivet lines wavy and rivets at irregular intervals, but they look real and my mistakes – well – just look like mistakes. I’ve tried all the commercial machines, too. I can make about ten good rivets before the shakes take over.



I have always liked machines and machining. It is apparent that there is a major movement toward computer assisted machining. Today, it is possible for an amateur to build and program a computer-controlled machine. In this case, I built one to make embossed rivets. The machine I describe here can be built for under $1,000 and will do your and all your buddies’ (and their buddies’) rivets flawlessly. How about a tender side in 30 minutes while all you do is watch the trains go by?



This will not be a step-by-step construction article. You probably don’t want to build a riveter like mine anyway – it has a very large embossing area because I work in #1 gauge, that is, 1/32 scale. You may wish to do things much differently. Like my Uncle Meb used to say: “There’s lots of ways to skin a cat.”



If you don’t feel up to the entire task, maybe you could form a team with your friends; one handling the computer part, one making the riveting fixture, one tying everything together, etc. Remember, this thing is so fast that it’s going to be idle most of the time, so it can serve many masters. It would make a good club project, too.



Here are the main components you will need:



Computer – This depends on your motion control software. If you choose simple software like that supplied with the MaxNC system, any Windows PC computer will do fine as long as it can run your word processing, CAD, and Converter programs. The motion control program uses DOS and a parallel printer port. Most PCs fit this description, but parallel printer ports are becoming more rare by the day. This is one of the few cases that an older computer is better!



If you use something like the HobbyCNC/MachII combination, you need a computer that runs Windows XP or 2000. But that’s been the norm for several years now. So It’s possible you have one already as I did. A parallel port is still needed.



CAD program - It must run on your computer and output files in DXF format.



DXF to G Code converting program



Word processing program – Hopefully, you have one that allows a “replace” command to replace one line with two lines when desired. I can’t make Notepad or WordPad do this. More about this later.



Motion control hardware – It should include the electronics package and three stepper motors.



Motion control software – Make sure it will run on your computer



X Y movement table of suitable size – Depends on the scale you model and can be homemade or commercially available.



Compressed air supply – The rivet die is pushed into the metal by a small air cylinder. I use an airbrush compressor.



The riveting fixture



But how do I tell this thing where to put the rivets?



Of course, you do have to lay the rivets out in a Computer Aided Design (CAD) software program drawing. This is much easier (and tolerant of mistakes) than actually manually laying them out on a sheet of brass or plastic. You easily set the distance between rivets precisely, make perfectly straight lines, etc. I can layout a tender side in less than three hours. When I want to layout the other side, I “mirror” the first side and like magic, I have the other side. This takes about 10 seconds. Can you beat that?



Lastly, I move the entire tender side so the rivet at the lowest, most left hand position is at the coordinates (0,0). You need to do this so later, when you want to emboss rivets, you define position (0,0) on your machine at the place you want this rivet formed. All the other rivets will follow where you defined them on your CAD layout. Save this CAD drawing in DXF format.



Usually, I print the drawing on my printer at a scale of 1:1 and compare the result with my source material to make sure there was no “brain fade”. You can never tell!



My Way: I use Autodesk’s AutoCad light, but it is rather expensive. I recently bought Autodesk’s QuickCad that costs less that $50 and it works great. If you search the Internet, you can find other cheap or even free CAD systems. Just made sure that it can export a drawing in DXF format (most do). I’ve provided a few hints that might make it easier to convert to G-codes in separate box below.



Now we must run the DXF drawing through a conversion program that the motion control part of our machine understands. That is to say, we must convert the DXF information contained in the CAD drawing into “G-codes”.



My Way: I convert the DXF drawing to g-codes in Ace converter. This is a free download a www.yeagerautomation.com/ace.htm . The result is a series of instructions in a text file that the software understands called “g codes”. Edit the file in a good word processing program like Word that has the “find and replace” feature. See the separate handout on “Editing the G-code from Ace Converter”



NOTE:  Make sure the rivets are on a separate layer in your CAD system and that a layer contains only rivets. If there are two rivet sizes, there must be two separate layers. Layout lines should be on a completely separate layer, also. When you convert using Ace, TURN OFF ALL LAYERS but the one later you want to convert. Ace does not know anything about die set changing and sometimes makes rivets and lines in weird sequences. Follow this rule: Only one die set size per layer and convert one layer at a time.



Now we need the rivet machine



The rivet machine really consists of three big sections: The motion control hardware/software system, the x y table, and the embossing mechanism itself. Let’s take these one at a time.



Motion Control Hardware/Software System



For a couple of years, I used a MaxNC system. It ran on an old PC running DOS. All in all, it worked well. It was a little slow (maybe 40 minutes to do a typical tender side loaded with rivets) and a little clunky that made a pseudo-techno-snob-wanna-be like me lust for more. I recently found that in HobbyCNC and MachII in combination. I’ll describe both.



My first control system -  I used a kit from MaxNC (p/n 20120 at $295) for my motion control. It contained the control board, stepper motors and software. Find them at www.maxnc.com/page5.html  .You must provide connectors, enclosure and an on-off switch. If you want something already built, you could try controller p/n 20450, its more powerful, too, but it costs $695. I suggest going through a distributor to buy anything from MaxNC. I have found Dan DeArmond of DeArmond tool prompt and helpful. See www.positiveflow.com/ . I think MaxNC products are adequate and relatively inexpensive, but their customer support is non-existent. That’s where DeArmond Tool comes in.



My second control system -  I wanted a control system that ran in Windows XP. This meant I would need a more up-to-date computer, but I had one already to go. After a lot of searching for hardware, I decided on HobbyCNC’s 3AUPCPKG (3 Axis) W/ Steppers for $176.00, see at www.hobbycnc.com/cncpackages/4aupcpkg/4aupcpkg.htm . My original system had both hardware and software, but the HobbyCNC system needed additional software to run under Windows XP. Again, after much searching, I decided on MachII. This is an amazing product that cost a measly $149.00!  See it at www.artofcnc.ca/index.html. It is extremely well supported and has an active group on Yahoo. If anyone decides to go the HobbyCNC/MachII route, I will gladly give them my configuration file for MachII that works for me.



Motion control kits for hobbyists have become quite a cottage industry. There are many to choose from. HobbyCNC and MaxNC are not your only choices! I just happen to know them best. If you want to learn more about what’s available, you should consider joining (they’re free) the following groups at Yahoo:



CAD_CAM_EDM_DRO-subscribe@yahoogroups.com

DIY-CNC-subscribe@yahoogroups.com

SherlineCNC-subscribe@yahoogroups.com



I am a mechanical, not an electrical or computer person. I am not a young video gamer… let’s just say that I was in grade school when my beloved Pennsy completely dieselized. If I can do this, so can you. Don’t be intimidated by the new technology.



X-Y Table



The xy table moves the sheet of brass or plastic under the rivet embossing dies. The sheet is firmly attached to and extends off the xy table. The size of the table you choose depends on how big a rivet pattern you want to make. I wanted to make at least a 60 by 20 scale foot pattern in  #1 gauge, 1/32 scale. This means I needed to have an xy movement of at least 24” by 7.5”. The amount of table movement is always less than the table size so I have a large (and relatively expensive) table. You probably do not need such a large table. You might investigate these:



www.sherlineipd.com/indflyer.pdf  p/n 6545 cnc ready table

www.taigtools.com/mmill.html p/n 2019 cnc ready mill. Perhaps Taig would sell just the xy table at a reduced price.

www.littlemachineshop.com/products/product_view.php?ProductID=1765 You must provide the stepper motor mounts.



The more adventurous will think about making a table. Unlike a milling machine, there are no real side loads so the table can be lightly made. You can use drill rod ways in brass bushings and all-thread rod for leadscrews. These components will probably give adequate precision if the rest of the table is carefully built.



Embossing Mechanism -  Here is where you can really be creative! Some friends and I made mine, but it is extreme overkill for anything smaller than Gauge 1. NWSL makes the defacto standard riveter in the US, but it has serious shortcomings for use in this project. First of all it’s too tall and too rickety. Secondly, alignment of the dies is a nightmare. However, the dies are very good and are readily available.



If you use the NWSL unit, toss the two spacer rods and replace them with a solid block of aluminum 3” x 2” x 1” or so. Drill and tap as required and bolt everything together. Is it solid as a rock now? It better be. After you figure out how to mount your air cylinder, you know what the length the die holder needs to be. Make it new from 0.375 drill rod. Don’t forget that you need to provide a spring to retract the die from the surface of the sheet you’re embossing.

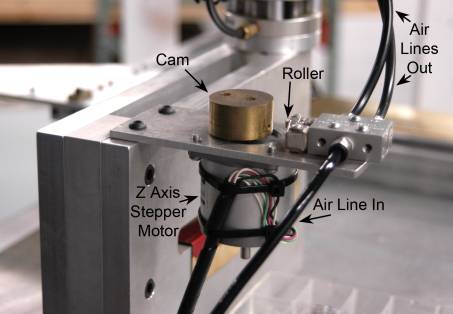

I use the z axis part of the controller to push the die up and down. When I tell it “make z go to zero”, the stepper motor has rotated the cam so that the cam does not push on the roller on the air solenoid so the compressed air is pushing the air cylinder up. The cam in the photo below is in the “die up” position. When I tell it “make z go to 1 inch (I’m fooling it here)” the stepper motor rotates the cam 180 degrees and actuates the solenoid, and the cylinder goes down to push the die and the rivet is formed.



I used a compact Bimba “Flat-1” double acting air cylinder with a 2” bore and 0.375” stroke PN FO-310.375 that costs about $62.50. See www.bimba.com/products/products.htm . The big bore of 2” means that you can use your airbrush compressor to run and emboss most of your rivets. If you run out of air, just slow the riveter down by adding more dwell time when the die is in the down position. I bought the air solenoid from www.mscdirect.com but I forgot the part number.



Make sure the dies align perfectly. There should be almost no side to side or fore and aft slop in the upper die holder. If there is, you must correct it or you could damage the die set.



An alternative idea is just use the NWSL dies and scrap the rest of their riveter. This may seem radical, but it is probably the same amount of work as modifying the whole unit. I’d start out with a 1” thick plate of aluminum, cut the throat with a band saw and drill and ream the die holes in a drill press. There is other work to be done, but you get the idea. Precision die alignment and rigidity are the main goals.



I make most of my own die sets. They are actually very simple to make and only require simple tools. But that’s another story for another time.



I think I’ve hit the main topics in this description. I encourage you to try a couple of new things. You’ll like it!









Cad Hints:



Don’t use circles to draw rivets!!! Ace Converter will try to draw circles, too!

Draw rivets using “node”, “point”, “marker” or whatever entity your Cad system uses.

Use the “array” command to make rows of rivets a specific distance apart.

Use “divide” command to put a specified number of points (or whatever) on a line. Then erase line.



In QuickCad, set the marker type to “point”. It’s at the bottom of the drop-down menu.       THIS IS IMPORTANT! Ace Converter did not accept any other marker type.

Set the line width to “wide” or “wider” so you can see the rivet you will draw.



I found QuickCad easy to learn and just as powerful as AutoCad light if you want to make rivets and simple lines. I bought mine online at www.autodesk.com  .



Sure, It’s Pretty,

But, Can It Do More Than Just Rivet?



As if that wasn’t enough! But, yes, it can. What’s it worth to you to have the most accurate sheet brass layout tool ever made? Ok, that you’ll ever have, then? Want more? You dog, you. How about a precision drill spotting tool for sheet brass or plastic? This is your baby.



Replace the lower die with a spring-loaded die shoe of any good engineering plastic. I made mine from acetal and a .250” I.D. spring from the hardware store. Replace the upper die with a sharp pointed die that will act like a scribe. If you draw your layout in your CAD system, you’re almost there. Convert it to g-codes with Ace. Look at the g-code file and, with practice, you can tell where the up and down commands should be. It’s simpler than it sounds.



If you have built your entire system tightly, you can scribe extremely accurate cutout lines saving you time and improving your precision. I routinely emboss rivets for a tender side and then, without taking the sheet brass off the table, change the die set and scribe the cut lines.



I draw the rivets and layout lines in the same Cad drawing so the align perfectly. This alignment is maintained as long as you do not remove the brass from the table – loosing its position. (I made fixturing to overcome this.) Please heed my warning above about Ace demanding from your CAD system separate layers for each rivet size and separate layer for lines. Turn off layers that require a die set change.



Drill spotting is even easier. Just pretend it’s a rivet. I began spotting holes for handrails, washout plugs, stack openings and many other things once I thought about it. If you have to put rivets on that sheet anyway, why not spot all that other stuff that’s easy now and so, so hard later? And it’s dead nuts on, too.



Now, I’m going to leave you with an idea. I don’t think I’ll do it. But one of you should make robust riveter with a little bigger diameter cylinder, make a square punch and die and have a cnc punch press. I could use it for my cab, ok? …Maybe I’ll just use my jeweler’s saw.



Bill Box



Thanks to my pals who, over the past dozen years, have helped turn a nightmare into just a bad dream:  Greg Murphy, Bob Breslauer, Matt Palmer, and John Starkey
